ENERGOmag 3-CF

Solid welding wire, unplasticized

Solid welding wire for MIG/MAG welding with mixed gases or CO2. Higher silicon and manganese content increases the strength of the weld metal, reduces susceptibility to surface contamination and contributes to a smooth weld. Provides a stable arc, low spatter and low smoke generation. Leads to less wear on the welding tip and provides better protection against corrosion. It is used in construction, shipbuilding and automotive parts manufacturing. It is particularly suitable for mechanised welding processes.

Basic material

Steels with yield strength up to

460 MPa for M21/ 420MPa for C1

S235JR-S355JR, S235JO-S355JO, S450JO, S235J2-S355J2, S275N-S460N, S275M-S460M, P235GH-P355GH, P275NL1-P460NL1, P215NL, P265NL, P355N, P285NH-P460NH, P195TR1- P265TR1, P195TR2-P265TR2, P195GH- P265GH, L245NB-L415NB, L450QB, L245MB-L450MB, GE200-GE240

Ship steels: A, B, D, E, A 32- E 36

Classification

DIN 8559	EN ISO 14341-A	AWS A 5.18
SG3	G 46 5 M21 4Si1/ G 42 4 C1 4Si1	ER 70S-6

Chemical composition of solid wire (%)

C	Si	Mn	S	P	Cu
0,06–0,14	0,7–1,0	1,6–1,9	≤0,025	≤0,025	≤0,35

Mechanical values of weld metal (according to EN 15792-1, shielding gas M21)

Yield strength	Tensile strength	Ductility	CVN efficiency values in J
0,2% N/mm2	N/mm2	%	-40 °C
≥ 460	500–680	≥ 20	≥ 47

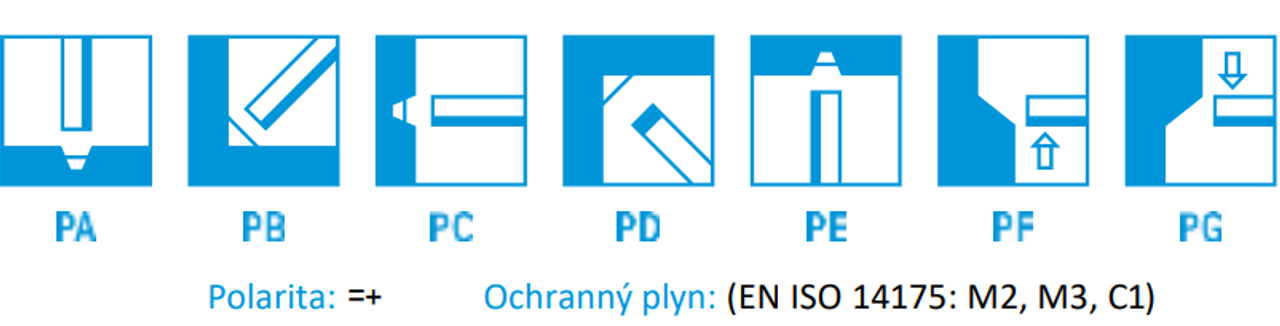

Welding positions

Classification

Wire diameter (mm)	Coil/packaging	Certificates
0,8–1,6	15 kg cievka BS300	CE, TÜV, DB
	250 kg sud
