GMAW solid welding wire

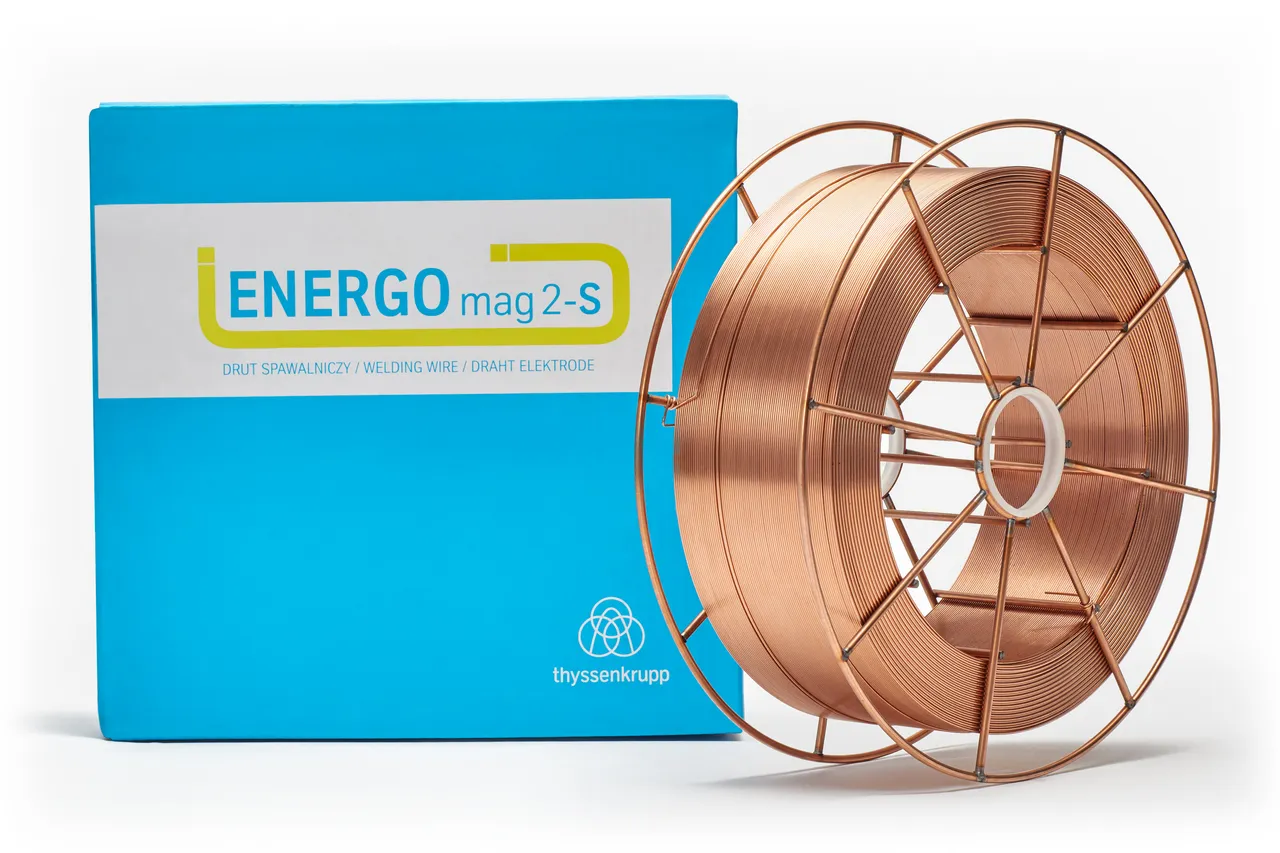

Variegated solid welding wire for welding of non-alloyed or low-alloy steels using CO2 or a mixture of gases depending on the wire type. The wire wound on a BS300 spool is suitable for welding low carbon structural steels, boiler steels, marine steels and fine grain carbon steels. Applicable for welding at high voltages (shower arc) and low amperes (short arc). Increases the strength of the weld metal and its susceptibility to surface contamination. Provides a stable arc and low spatter.
GMAW solid welding wire
Steels with yield strength ≥ 420 MPa S235JR-S355JR, S235J0-S355J0, S235J2-S355J2, S275N-S420N, S275M-S420M, P235GH-P355GH, P275NL1-P355NL1, P215NL, P265NL, P355N, P285NH- P420NH, P195TR1-P265TR1, P195TR2-P265TR2, P195GH-P265GH, L245NB- L415NB, L245MB-L415MB, GE200-GE240
Ship steels: A, B, D, E, A 32- E 36
DIN 8559 | EN ISO 14341-A | AWS A 5.18 |
SG2 | G42 4 C1 /M21 3 Si1 | ER 70S-6 |
C | Si | Mn | S | P | Cu |
0,06–0,14 | 0,7–1,0 | 1,3–1,6 | ≤0,025 | ≤0,025 | ≤0,35 |
Yield strength | Tensile strength | Ductility | CVN efficiency values in J |
0,2% N/mm2 | N/mm2 | % | -40 °C |
≥ 420 | 500–640 | ≥ 20 | ≥ 47 |
Wire diameter (mm) | Coil/packaging | Certificates |
0,6–1,6 | 15 kg coil BS300 | CE, TÜV, DB |
250 kg box |
