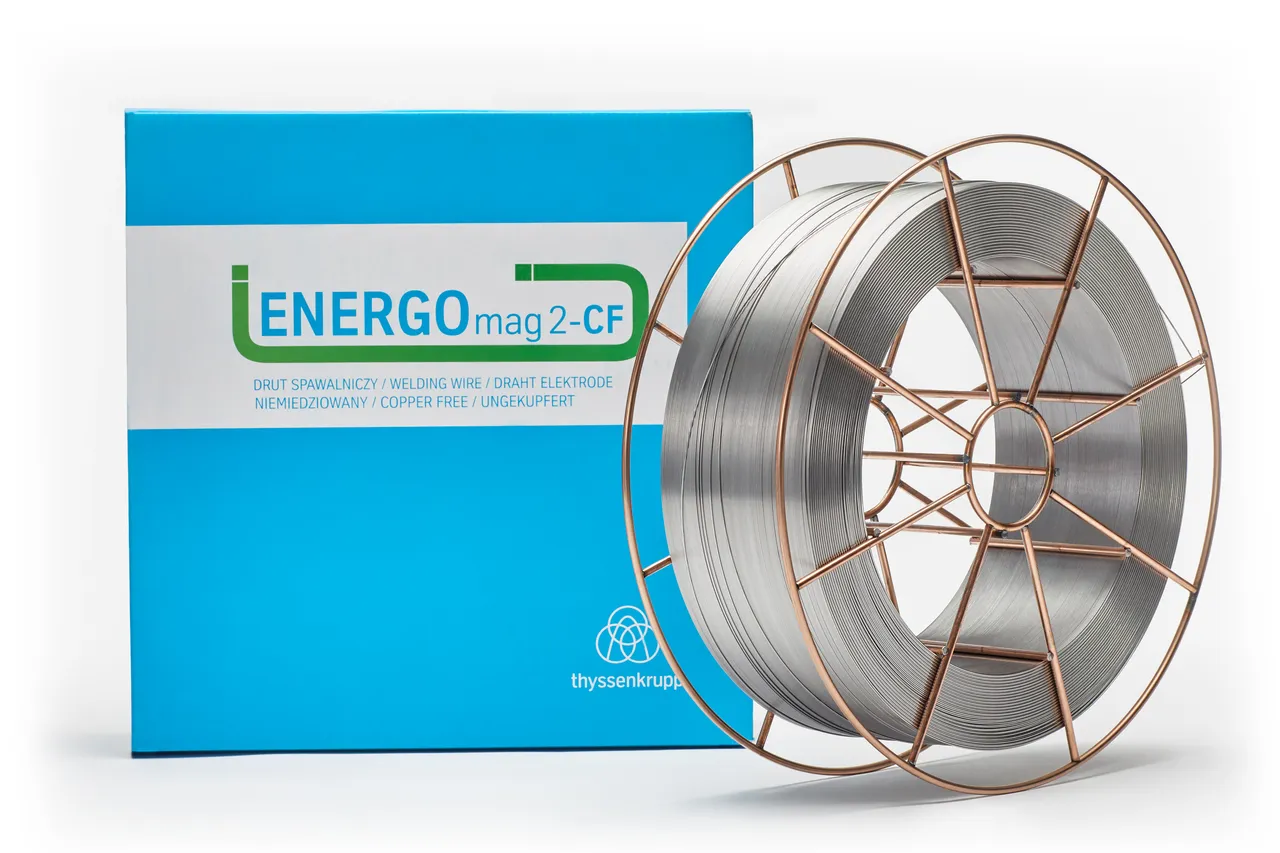

ENERGOmag 2-CF

Solid welding wire, unplasticized

Unwelded solid welding wire for welding of non-alloyed or low-alloy steels using CO2 or a mixture of gases. Reduces susceptibility to surface contamination and contributes to a smooth weld. Leads to less wear on the welding tip and provides better protection against corrosion. It is used in construction, boiler, tank, structural, shipbuilding and automotive parts. It is particularly suitable for mechanised welding processes. It provides a stable arc, low spatter and low smoke generation.

Basic material

Steels with yield strength ≥420 MPa S235JR-S355JR, S235JO-S355JO, S235J2-S355J2, S275N-S420N, S275MS420M, P235GH-P355GH, P275NL1-P355NL1, P215NL, P265NL, P355N, P285NH-P420NH, P195TR1-P265TR1, P195TR2-P265TR2, P195GH-P265GH, L245NB-L415NB, L245MB-L415MB, GE200-GE240

Ship steels: A, B, D, E, A 32- E 36

Classification

DIN 8559	EN ISO 14341-A	AWS A 5.18
SG2	G42 4 C1 /M21 3 Si1	ER 70S-6

Chemical composition of solid wire (%)

C	Si	Mn	S	P	Cu
0,06–0,14	0,7–1,0	1,3–1,6	≤0,025	≤0,025	≤0,35

Mechanical values of weld metal (according to EN 15792-1, shielding gas M21)

Yield strength	Tensile strength	Ductility	CVN efficiency values in J
0,2% N/mm2	N/mm2	%	-40 °C
≥ 420	500–640	≥ 20	≥ 47

Welding positions

Classification

Wire diameter (mm)	Coil/packaging	Certificates
0,6–1,6	15 kg coil BS300	CE, TÜV, DB
	250 kg box
